Vickers Hardness tester

Our Vickers Hardness Tester and other Testers is to enable our customers to evaluate and understand the mechanical performance of their materials on micro and nano scales. With field experts in nanomechanical testing, data acquisition, system integration and software development on our staff, we are well positioned to provide you with the most accurate results along with leading edge characterization. Come see our latest Rockwell Hardness Tester, Brinell Hardness Tester, Impact Tester, Charpy Impact Tester, Universal Testing Machine, Vickers Hardness Tester, Portable Hardness Tester, Compression Testing Machine, Concrete Tester, Concrete Compression Tester, Concrete Load Tester and many other Material Testing System as well as Customised Material Tester.

Need Nano Indentation System?

Brinell Hardness Tester is a lab instrument to measure the hardness value of all kinds of metals according to Brinell hardness principle ASTM E10 and ISO 6506. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals industries, as well as in the laboratories, universities, college and scientific research institutes.

Brinell HBE 3000b.jpg

This machine is used to test compression strength of building material just like concrete, cement and brick. The test load can be indicated as real and Max value. The result can be printed by the Mini printer.


HVT-1000Touch Screen LCD Digital Micro Hardness Tester

  • Two grades micro-reading magnification with 100X and 400X times.

  • Large LCD screen can directly show measurement methods, test force, indentation   length, hardness value, dwell time of test force and the number of measurement.

  • Reading the data and testing result, processing data, outputting the result to  printer,  converting the scales to 17 scales of HV, HR, HB and etc, saving data and linking RS232 interface.

  • Can be Optionally equipped with digital microscope and interface, which can   be linked to camera and CCD video-camera.

  • Can take photos of the indentation and metallographic composition of the material If equipped with a pick up camera.

  • Lens/indenter switch With Motorized Turret.


Hardness Tester Accessories

CCD Automatically Image Measuring System
It combines computer automatic measuring system with hardness tester. By means of CCD Camera Interface connect Digital Brinell or micro Vickers hardness tester with computer. Whole testing operation can be processed by operating keyboard and mouse, therefore the operation is easy and measuring precision is high. Maximum decrease man-made error and avoid seeing weariness of the operator. It is an advance hardness tester which can meet the needs of various Digital Brinell or micro Vickers hardness testing.

Acc2

This hardness tester is an ideal equipment to test the hardness of tablet and soft gelatin capsules. It can reflect the standard of production craft as an important index for the quality control of tablet and soft gelatin capsules. It is widely used on the science research area and medical field to guarantee the accuracy of clinical trail. The high accuracy pressure sensor and the digital display can help user test more conveniently.


UE3000 series Computer Control Electronic Universal Testing Machine

This electronic universal testing machine consist of host machine, mechanical limit switch, electrical system,test accessaries, etc . It is suitable for tensile, compression, bending and other mechanical property for metal and non-metal material, such as steel, aluminum,copper,geotextile,plastic,rubber,thread,wood,alloy,PVC,spring,electrical wire and cable,composite material,profiled bar, waterproof roll and all ASTM, ISO, JIS, DIN, BS, EN relative material mechanical testing standards.The machine is calibrated according to international norms requirement as ASTM E4, ASTM E83, ISO7500-1, ISO9513 and supply a full detailed calibration certificate.They are essential testing instruments for quality control section, university and college,research institution and mining enterprise quality lab.

UTM UE34xx.jpg

UE14XX series Computer Control Electronic Universal Testing Machine

Test Method

They are suitable for tensile, compression, bending, shearing and all other common material mechanical tests for metal and non-metal material for example steel, aluminum, copper, geotextile, plastic, rubber, thread, wood, alloy, PVC, spring, electrical wire and cable, composite, profiled bar, waterproof roll and all ASTM, ISO, JIS, DIN, BS, EN relative material mechanical testing standards.


Charpy (simple-beam) Impact Testing Machine mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron material and their alloy, under dynamic load impacting.
This machine can be operated semi-automatically. The pendulum of the machine is raised or released automatically by button pressed. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise. The machine can do the test according to ASTM E23 and ISO 148 or other equal standards.

Charpy Impact Tester.jpg

HS series shore hardness tester is an advanced integrated digital display type of portable tester that can be used to determine the shore hardness value of rubber and plastic products, it has the advantages of compact structure, accurate measurement value, convenient carrying, light weight and easy operation etc. It is the ideal measuring instrument for using on the spot. According to Standards: DIN 53505, ASTM D 2240, ISO 7619, JIS K7215

HS Digital Shore Hardness Tester.png

Model HRS-150 is Rockwell test with scales A-B-C (60/100/150kgf ) with digital indicator and motor control loading. Hardness value convert to HV, HB.
Model HRMS-45 is superficial Rockwell test scales N & T (15/30/45kgf) with digital indicator and motor control loading. Hardness value convert to HRA, HRB, HRC, HV, HB


HBRVS-187.5 is a high precision, easy operation, high sensitivity metal hardness instrument which is combine the Rockwell, Brinell, and Vickers hardness principle widely used in factory workshops, laboratories, universities and research institutions.
※Large LCD and Microchip control system, makes hardness   testing be     automatically operated.
※Built-in printer records the main technical data of the entire testing process.
※Adopting manual lifting platform, it completely achieves the realization of the test force imposing, removing, hardness value direct showing and other automated operation.
※High accuracy avoiding the human operational error, is a mechanical and electrical integration also high-tech and advanced hardness tester.


Digital Surface Determination Tensiometer

The tensiometer is mainly to test surface tension of all kinds of liquids just like water, oil liquid chemicals and so on. It is widely used in the petroleum, chemical industry, research department and university. This instrument is composed by platinum ring , torsion wire, differential transformer and data procession system according to the ISO 1409 and ASTM D971 standard.


Vicker’s Hardness Tester is a testing instrument to measure the hardness value of all kinds of metals according to Vicker’s hardness principle ASTM E92 and ISO 6507. They are widely used in metallurgy, forging, casting, hardness steel and nonferrous metals industries, as well as in the laboratories, universities, college and scientific research institutes.
HVM-5/10/30/50 Digital Vickers Hardness Tester With Motorized Turret
※With Large LCD display.
※With motorized turret, the indenter and objectives can be shifted automatically.
※Due to the excellent combination between the indenter and pressure sensor, the transitive error of test force is reduced.
※With large size test table, X-Y test table(100x100mm,stroke 25x25mm) and other accessories will be supplied if required.
※Measure the Vickers/Knoop hardness values(HV/HK) from HV0.3 to HV10 and HK0.3 to HK10.Select
the test force directly.
※With function of automatic exchanging hardness scales (HB, HRC, HRA, HRB, HRN,HRT).
※The CCD image automatically measuring software may be equipped if the user optional required.
※With built-in thermo-sensitive printer.
※All information such as diagonal lines length of indentation, hardness values, data statistics and
hardness exchange values, etc are displayed on the LCD screen.
※With the thin film keyboard, various technical data can be inputted in. Press the START key,the whole
test procedure can be carried out automatically.


Melt Flow Indexer

The Melt Flow Indexer is designed according to ISO1133, ASTM D1238 and ASTM D3364.
It is suitable for determining the MVR and MFR of thermoplastic. Not only can which has low melt temperature.
It has been widely used in testing the high melt temperature such as PC, Fluor plastics and nylon, PE, PP, POM,PS,ABS resin plastics.


LY-2250 Atmospheric Consistometer

LY-2250  atmospheric consistometer is designed according to the requirements of the American Petroleum Institute API 10.It can determine the water content of slurry, fluid loss, cement slurry flow change and water loss performance. also can do pre-mixing for cement slurry, free

Consistometer

Computer Control Torsion Testing Machine

Computer Control Torsion Testing Machine
The loading system of this machine, controlled by computer, rotates load through alternating servo motor and cyclical gear reducer. Torque and twist angle detection uses the high-precision torque sensor and a photoelectric encoder; computer displays dynamically the curve of test torsion angle and torque, rate of loading, peak of power and so on. It is a perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise.


This machine is widely used for the testing of impact strength test of plastic pipe materials and pipe components, and also suitable for the external loads impact strength test of plastic board, glass fiber reinforced plastic and kinds of Hard non-metal material. The machine can fulfill the test standard of ISO3127, ISO 4422, ISO 3633, EN744, EN 1411. It is an ideal instrument for quality inspection in construction industry, manufacture, chemical industry and university.


Ultrasonic Hardness Tester

HS series shore hardness tester is an advanced integrated digital display type of portable tester that can be used to determine the shore hardness value of rubber and plastic products, it has the advantages of compact structure, accurate measurement value, convenient carrying, light weight and easy operation etc. It is the ideal measuring instrument for using on the spot. According to Standards: DIN 53505, ASTM D 2240, ISO 7619, JIS K7215

Ultrasonic HT 1.jpg

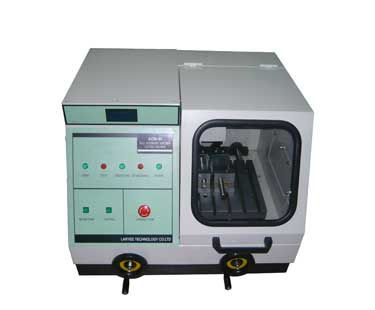

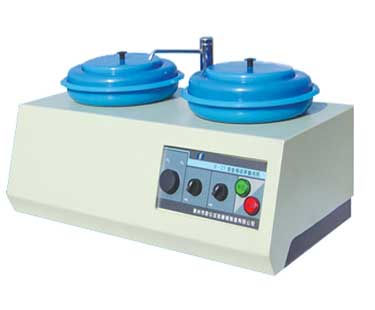

Metal sample preparation tools

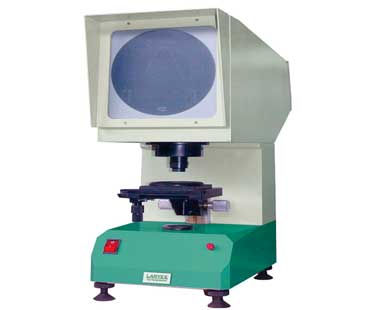

Impact Tester Sample preparation tools

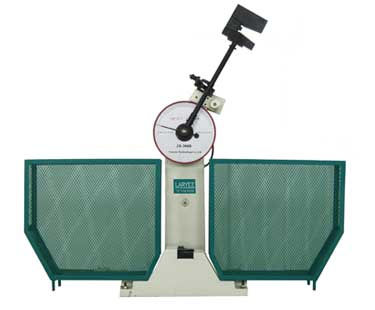

Charpy Pendulum Impact Tester

Disappointed with so FEW products.......we have many more hardness tester that suits your needs. Email us to enquire.
